GBR1200

Total Solution for PCB routing Operations

GBR1200

Total Solution for PCB routing Operations

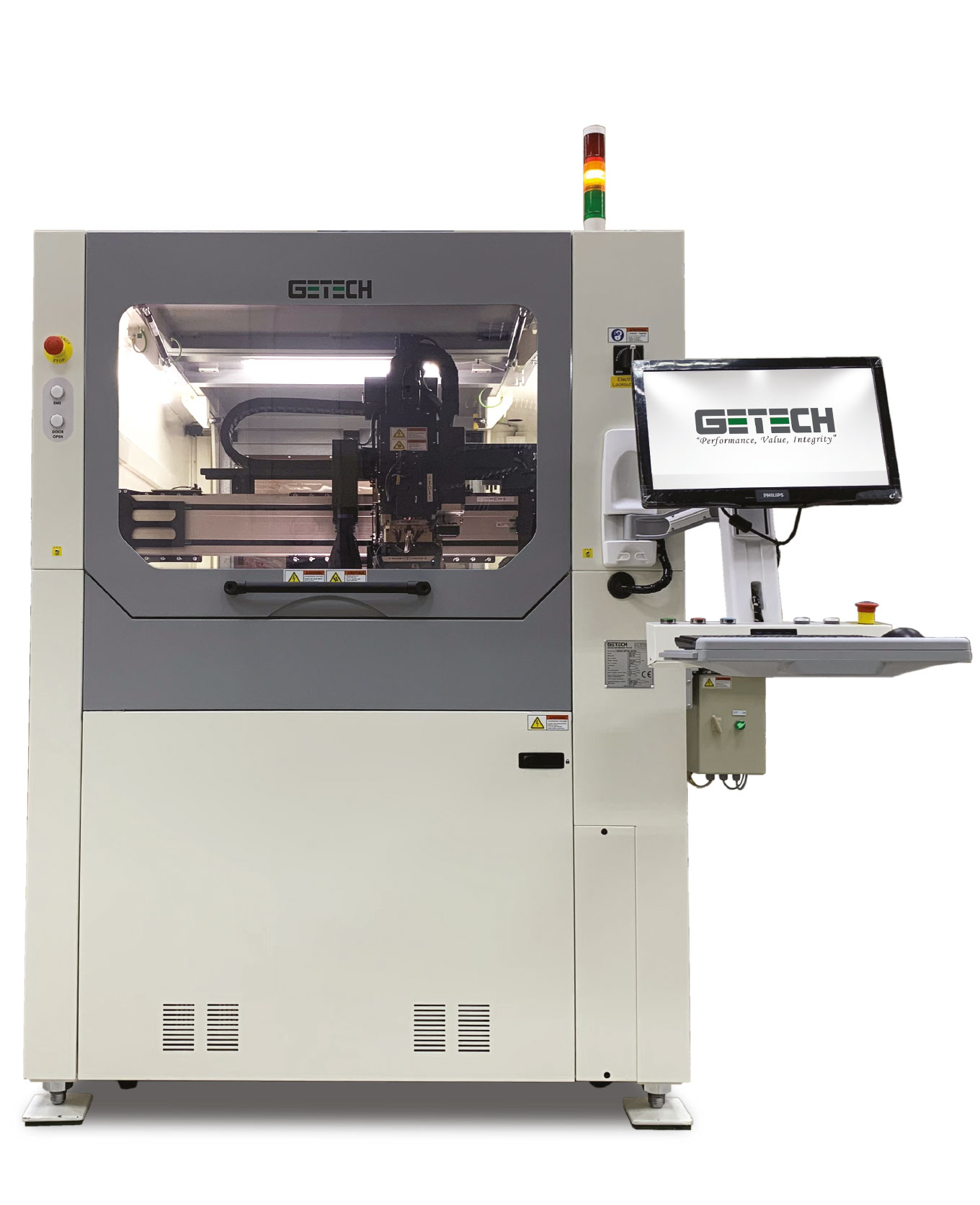

The GBR machine is designed to route (depanelize) PCBA panels with sizes up to 600mm x 400mm into individual PCBs.

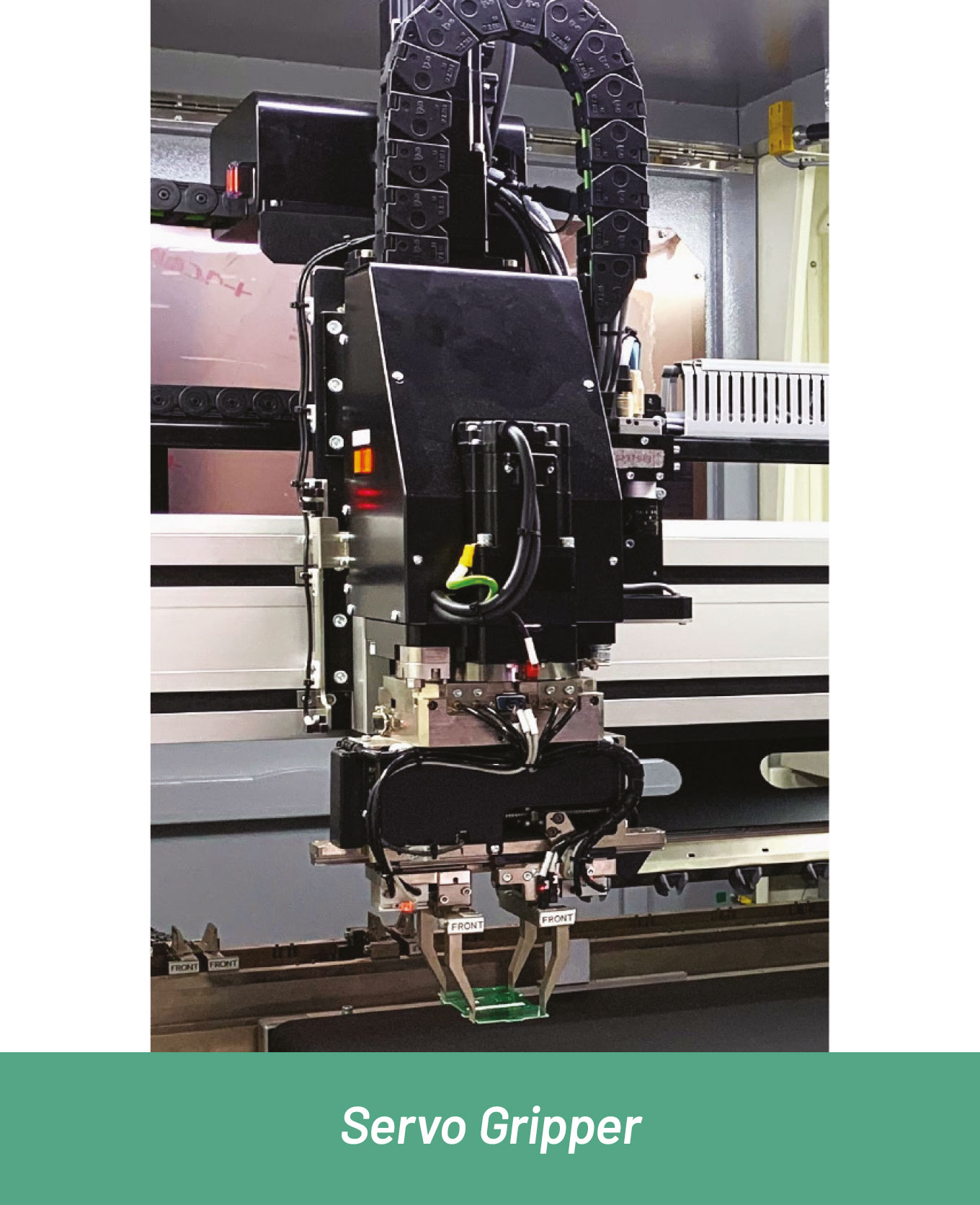

The panels enter the machine by conveyor, are barcode verified, fiducially corrected and clamped. Using a top robot and a servo gripper the individual PCB are gripped and routing is executed from beneath the PCB. The routed PCBs are moved to the machines offload location by a high speed linear motor drive system, still held by the servo gripper. The offload location can be configured as flat belt conveyor, bridge axis, pallet/ tray conveyor or customer specific solutions. Using a high-resolution CCD camera and user-friendly Windows-based software allows users to program the routing paths in minutes. There are no limitations in the number of programs stored. GBR uses heavy welded steel structure to ensure rigidity, stiffness and high performance. Good/Bad PCB sorting is an integral function of the machine with an internal Reject station for bad boards.

DOWNLOAD BROCHURE WATCH VIDEO REQUEST A QUOTE
FEATURES
GBR1200 :
Fixtureless Bottom Router High Accuracy, High Quality Cuts In-Line Solution L to R or R to L flow Programmable Servo Gripper with Auto Finger Exchange Auto Tool Change and Diameter Validation Auto Product Change, Auto Width Adjust Powerful Dust Extraction System Post Cutting Ionized Secondary Cleaning Station Post Cutting Dimension Check Tray, Pallet and Conveyor Offload Options Flexible or High Volume Configuration
Routing Capability
Non-Routing Speed :
1000 mm/sec
Routing Speed :
100 mm/sec max (depending on material, cutting quality & tool diameter)
Repeatability:
±0.05 mm straight lines, curves, and interpolated profiles
Workstation
Design:
Fixtureless - Bottom Routing, In-line
Panel Positioning:
Conveyor rail clamping (Top and Side) and Board gripping
Panel Size:
L600 x W400 single station conveyor: L400 x W400 w 2 stage conveyor
Panel Thickness:
0.8mm to 6mm
Panel Max Weight:
5kg. Individual PCB 2.5kg
Component Height:
: Top Max. 70 mm : Bottom components within 25mm radius of routing, Max. 12 mm : Outside of 25mm radius of routing, Max. 30 mm
